12V PWM Dimmer Switch Recessed Mount All Aluminum Push Button Dimming Switch, Blue Backlight 22mm Drill Hole 6A

Smooth PWM Dimming - Adopt high energy efficiency PWM dimming, 5 - 100% infinitely variable dimming, current rated 6A

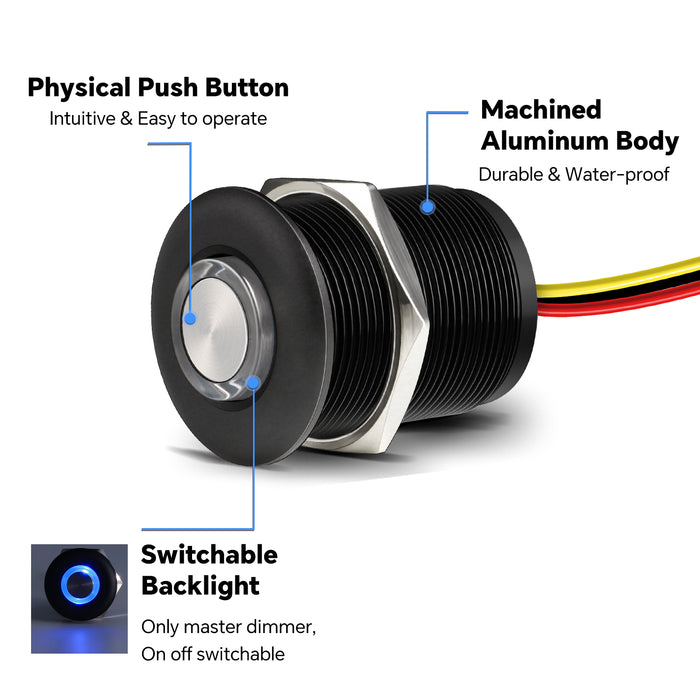

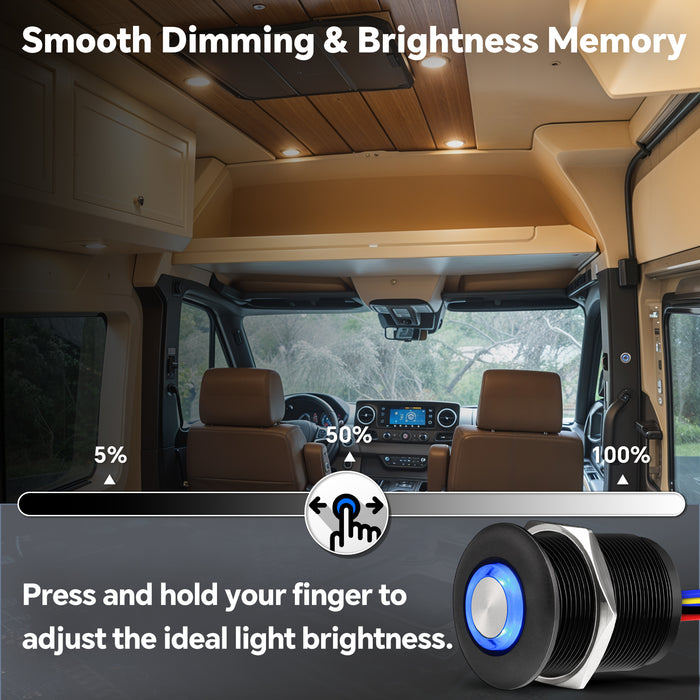

Easy to Use - Reliable push button, short press to control light on/off, longer press to adjust the brightness to desired level
Blue Backlight On Off Switchable - The blue ring light preserves night vision in the night. You can freely switch the red backlight on or off according to personal preference
Memory Function - The light will keep the same status ( including on/off states and brightness) as last setting when power is applied
All Aluminum Housing - Made of all aluminum housing and copper screw nut for perfect anti-corrosion, water-resistant design
Recessed Mount - Drill a 22mm hole on cabinet or custom control panel, dimmer flush with mounting surface, very sleek and clean

Specification
Material: All aluminum
Push button:On/off/dimming control
Dimming type: PWM dimming
Backlight: Soft blue, with on/off setting
Memory function: on/off status and brightness
Voltage: 12VDC
Rated current: 6 Amps
Water-resistant: IP65 rated

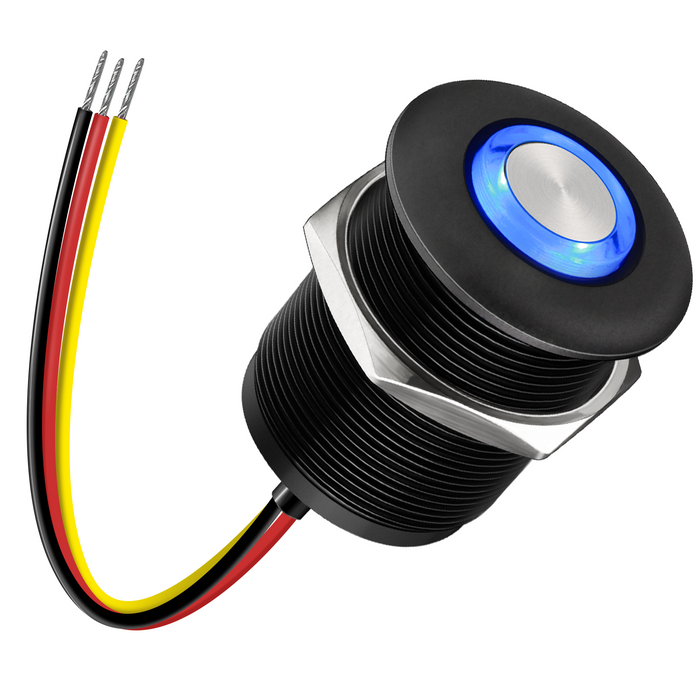

Pigtail: length 160mm

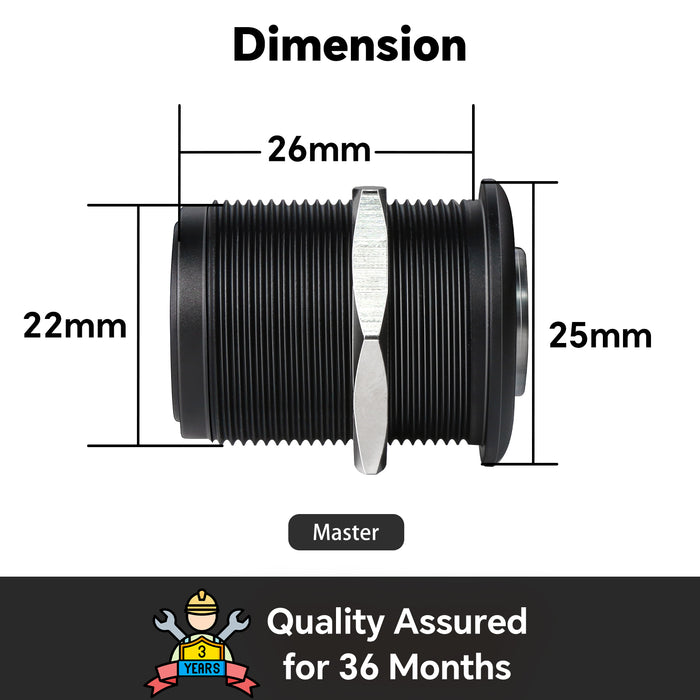

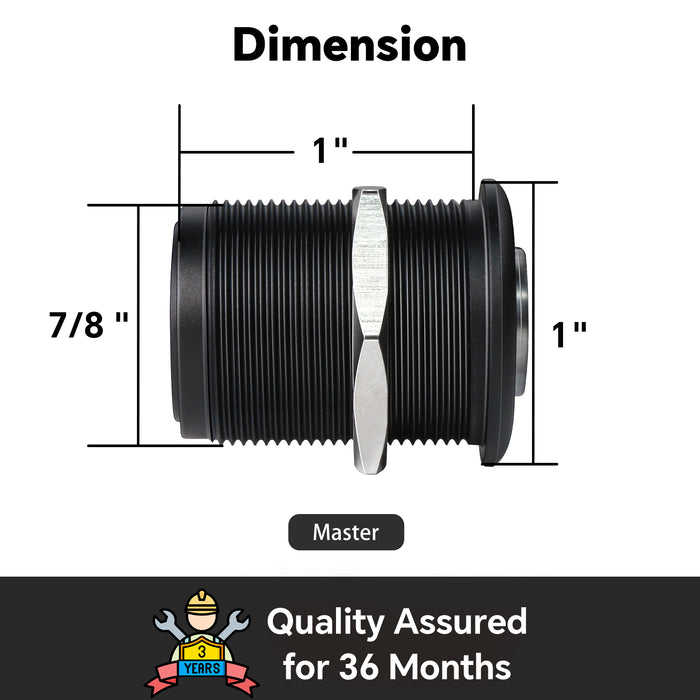

Size: Threaded DIA 22mm, depth 26mm, head DIA 25mm
Mounting hole: 22mm
